American SpecialtiesAmerican Specialties Paper Towel Dispenser/Waste Receptacle
$436.88

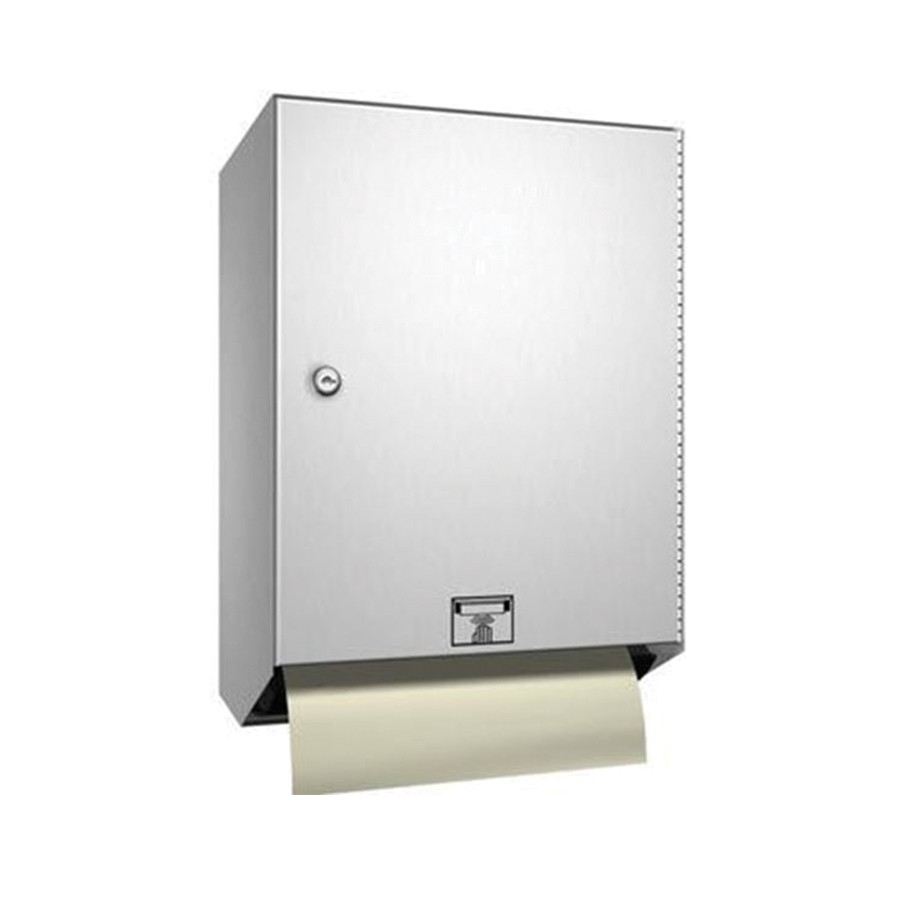

American Specialties ASI-8523A | Automatic Paper Towel Dispenser
Proximity sensing no-touch unit dispenses a pre-set length per cycle from 8" or 9" wide standard towel roll up to 800 ft. (244m) long and has stub roll capability for continuous dispensing. Powered by 4 D-size batteries (not included).
Specifications
| Material | Satin stainless steel |
| Capacity | Holds and dispenses one 8" wide x 8" diameter (203mm x Ø203mm) standard towel roll up to 800 ft. (244m) long and one 8" wide (203mm) stub roll up to 4" diameter (Ø102mm) |
| Battery | Four (4) D-size batteries (not supplied) |
| Overall size | 13" x 17-3/4" x 10-1/2" (330 x 451 x 267 mm) |
| Operation | Towels are dispensed one at a time automatically when hands are placed in sensor zone until supply is depleted. Unit may be reloaded with a full roll to automatically start when finished with an existing partial roll. Locking door prevents unauthorized access and removal. |
| Installation | Unit is mounted on wall using No 10 self-tapping screws (by others) through concealed mounting holes provided. For compliance with ADA Accessibility Guidelines, unit should be installed so that bottom edge of towel dispenser door is 54" (1372mm) maximum above finished floor (AFF) if clear floor side reach access is provided or 48" (1219mm) maximum AFF if clear floor forward reach access only is provided. Provide adequate in-wall reinforcement (by others) in drywall construction to hold mounted unit in-service after wall is finished. Provide appropriate anchors (by others) to suit wall and field conditions for installation onto walls other than new drywall. |
